Parasound Halo P6 Preamplificador Stereo Usb Dac- DSD- Phono- Hi End

Descripción

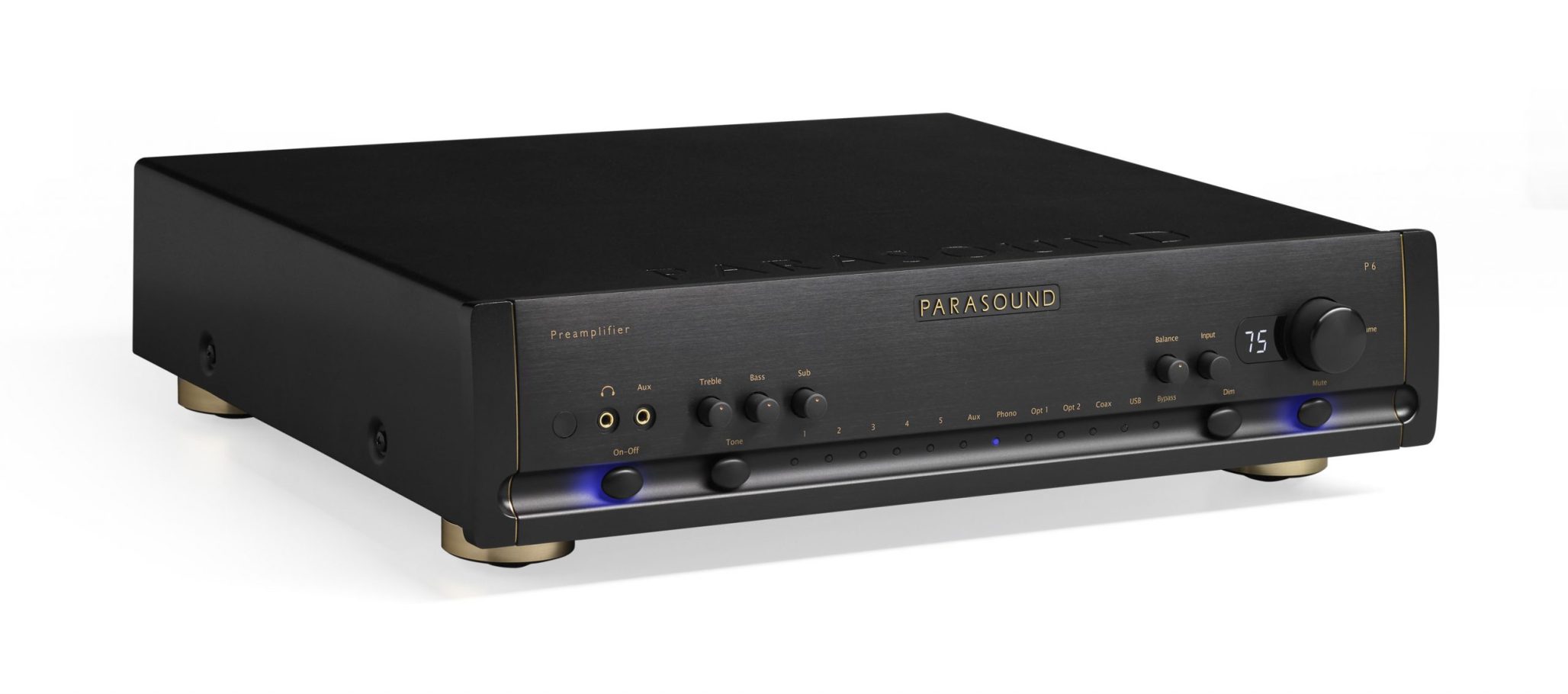

HALO by PARASOUND P6 PREAMPLIFIER STEREO HI-END (Con salida pre para subwoofer) USB DAC

Silver o Black

Click for high resolution image

  • HALO by PARASOUND P6 PREAMPLIFIER STEREO HI-END (Con salida pre para subwoofer) USB DAC . Phono
    New Features (Changes from the P 5)
    ESS Sabre32 Reference DAC replaces the original Burr-Brown DAC
    USB input is now capable of DSD & 384kHz/32-bit PCM (up from 96Khz/24-bit)
    Burr Brown analog resistor ladder volume control
    Dimmable front panel volume display
    Upgraded USB receiver with “plug and play” operation with Windows 10
    An additional optical input (2 total)
    Ball bearing supported solid aluminum volume knob
    Programable default turn on volume setting
    Favorite volume memory with remote control button
    Increased phono stage gain for lower output cartridges
    Improved Left/Right channel separation and balance tracking
    Sand blasted metal end caps replace plastic end caps on the P 5
    Updated cosmetics with subtle gold highlights
    Preamp and DAC Features
    ESS Sabre32 Reference DAC (ES9018K2M)
    Asynchronous USB 2.0 supports PCM up to 384kHz/32-bit
    USB input decodes Native DSD64, DSD128, DSD256 and DoP DSD
    Coax and optical inputs accept PCM up to 192kHz/24-bit
    Analog bass management with high & low pass crossovers
    Home theater bypass input for surround sound integration
    Front panel subwoofer level control
    Dedicated high current headphone amplifier (TI TPA6120)
    Phono input for MM, MC and MI with 100 Ω or 47k Ω load
    Front panel Aux input with automatic +12 dB gain stage
    5 pairs RCA line level Analog inputs
    1 pair XLR balanced Analog input
    Balanced XLR and RCA left and right preamp outputs
    1 balanced XLR and 2 RCA subwoofer outputs
    Bass & treble controls with relay bypass from remote or front panel
    Rear panel IR input and IR loop output jacks
    12 Volt trigger output
    Back-lit remote control with discrete buttons
    0.5w standby power consumption meets Energy Star & EU specs
    Frequency Response
    10 Hz – 100 kHz, +0/-3 dB
    20 Hz – 20 kHz, +0/-0.5 dB Total Harmonic Distortion (THD)
    < 0.01 % Interchannel Crosstalk
    > 70 dB at 20 kHz
    > 78 dB at 1 kHz Preamplifier Stage Input Sensitivity
    300 mV in for 1 V
    Total Gain: 10 dB
    Max Output: 7.5V S/N Ratio – Line Inputs 1- 5
    > 108 dB (shorted, IHF A-weighted)
    > 88 dB (shorted, unweighted) S/N Ratio – DAC Inputs
    > 108 dB (IHF A-weighted)
    > 88 dB (unweighted) S/N Ratio – Phono Input
    MM > 80 dB (shorted, IHF A-weighted)
    MM > 70 dB (shorted, unweighted)
    MC > 67 dB (shorted, IHF A-weighted)
    MC > 55 dB (shorted, unweighted) Phono Stage Sensitivity / Input Impedance
    MM: 38 dB / 47 k Ω
    MC: 52 dB / 47 k Ω or 100 Ω Input Impedance
    Unbalanced: 24 k Ω
    Balanced: 100 k Ω per leg Preamplifier Output Impedance
    Unbalanced: 100 Ω
    Balanced: 470 Ω per leg High & Low Pass Crossover Slope

Marca

Parasound
